CO2 Laser Tube 280W CNC Laser Cutting Stainless Steel Machine CNC Sheet Metal Cutting Machine

Product Description                           1390 Mixed Co2 laser cutting machine for cutting metal and nonmetal materials1).Metal Materail: This Machine Can Cut Carbon Steel, Stainless Steel, According To Different Metal  Materials And Thickness, W

Featured Products

Product Description

                           1390 Mixed Co2 laser cutting machine for cutting metal and nonmetal materials

CO2 Laser Tube 280W CNC Laser Cutting Stainless Steel Machine CNC Sheet Metal Cutting MachineCO2 Laser Tube 280W CNC Laser Cutting Stainless Steel Machine CNC Sheet Metal Cutting Machine

1).Metal Materail:

This Machine Can Cut Carbon Steel, Stainless Steel, According To Different Metal  Materials And Thickness, We Will Adjust The Pluse Width, Current, Frequency, Cutting Speed.

2).Non-Metal Materails :

Wood, Bamboo, Jade Articale, Stone(Only Can Engraving), Organic Glass, Crystal (Only Can Engraving), Rubber,Plastic, Cloth, Leather, Etc.

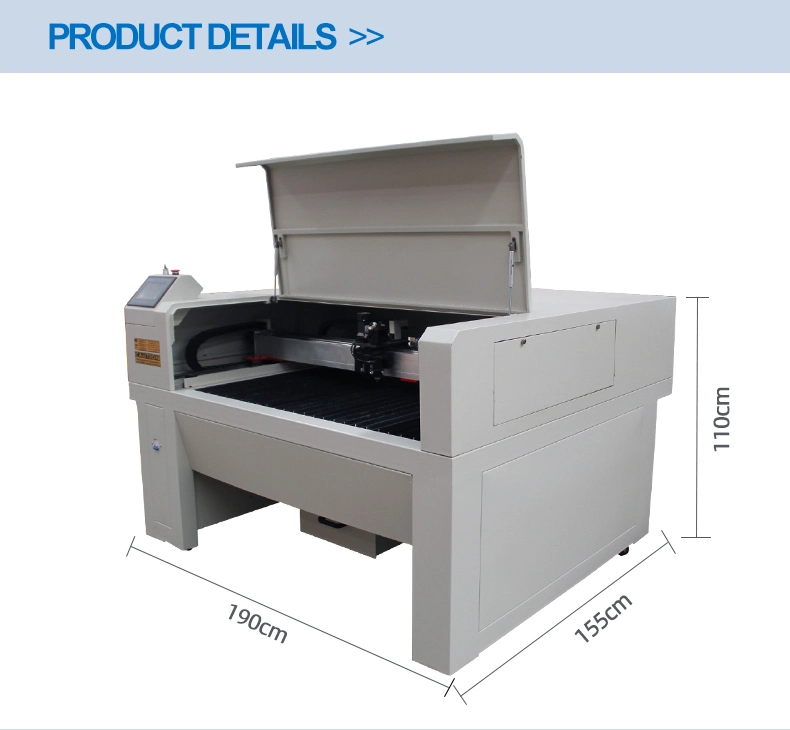

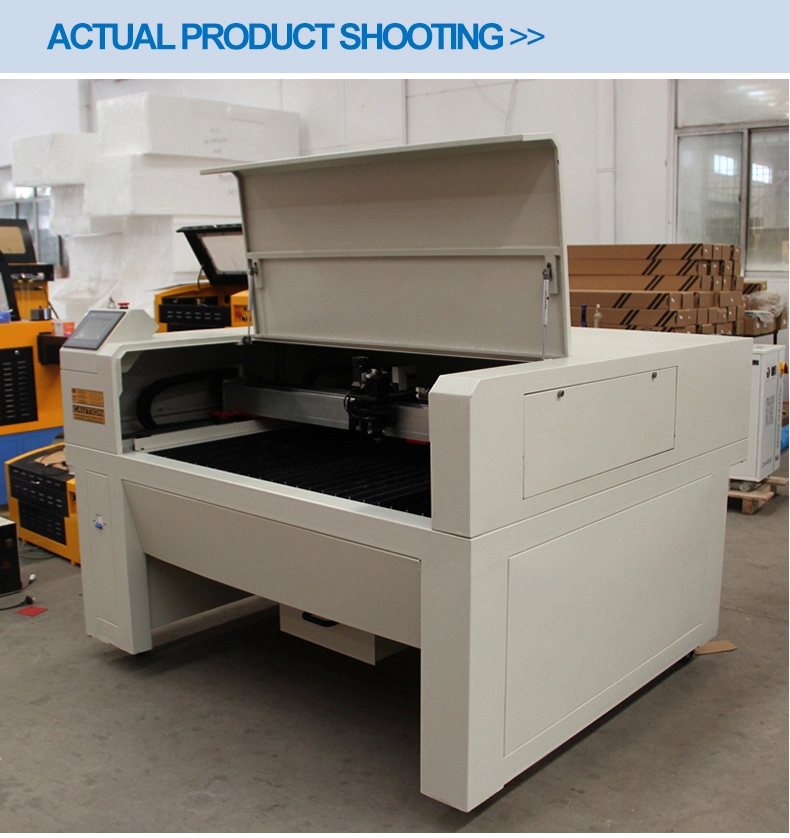

Detailed Photos

CO2 Laser Tube 280W CNC Laser Cutting Stainless Steel Machine CNC Sheet Metal Cutting MachineCO2 Laser Tube 280W CNC Laser Cutting Stainless Steel Machine CNC Sheet Metal Cutting Machine

Product Parameters
Product nameMixed 1390 Co2 laser cutting machine
Laser Power150w/180w/200w/300w(Optional)
Working area130cm*90cm / 47in*35in
Laser typeCO2 sealed laser tube,water-cooled
Engraving speed2000mm/s
Cutting speed1500mm/s
Power supply220V/50HZ,110V/60HZ
Graphic format supportedBMP, PLT, DST, DXF, AI
Software supportedCorelDraw, PhotoShop, AutoCAD,TAJIMA
Driving systemStepper motor
Optional partsUP-down worktble,Rotary axis
Applicable materialAcrylic, crystal, glass, ceramic, marble, metal coating, cloth, fabric, wood ,metal,etc.


Power and cutting reference thickness

 150W180W280W300W
Acrylic20mm25mm30mm30mm
Plywood15mm20mm20mm20mm
MDF10mm15mm20mm20mm
Stainless steel1mm2mm3mm3mm
Carbon steel1.5mm2mm3mm3mm

Cutting sample

CO2 Laser Tube 280W CNC Laser Cutting Stainless Steel Machine CNC Sheet Metal Cutting Machine

Packaging & Shipping
PackingCO2 Laser Tube 280W CNC Laser Cutting Stainless Steel Machine CNC Sheet Metal Cutting Machine
Size2200x1390x1250mm
Weight500KG
Packaging Standard export wooden box
DeliveryNormally 7-20 days after receiving deposit,
