Widely used in precision electronics, hardware, watches, glasses and other industries, can be more accurate of seven aluminum alloy, non-ferrous metals, stainless steel and other metal sheets and high reflective materials.
Laser power 500-2000w (optional), intended for cutting 0.5-9mm carbon steel plate, 0.5-6mm stainless steel plate, galvanized plate, electrolytic plate, 0.5-3mm aluminum alloy, 0.5-3mm brass and copper and other non-ferrous materials .
Technical Parameters for cnc fiber metal laser cutting machine::
1000w (1500W optional )
Sawtooth work table
PC control with Cypcut software and DSP controller
Japan Yaskawa servo motor and drivers
Raytools manual laser head
Linear rail guide from Taiwan PMI
XY by gear Taiwan YYC, Z by ball screw Taiwan TBI
S&A CWFL best brand in China
Min line width
Coreldraw, Photoshop, AutoCAD, etc
Graphic format support
PLT, DXF, BMP, JPG ,AI ,ect
Main parts of cnc fiber metal laser cutting machine:
1. The bed is welded from thick steel pipes. The bed is annealed to eliminate excess hard force, increase the ductility of the bed, and ensure stability during the cutting process.
2. CypCut Controller
4. Moving roller
The machine comes with the moving roller, which will help you to move the machine easily.
|Machine Tool Part|
|Guide rail||PMI Taiwan||H-degree High Precision|
|Rack||YYC Taiwan||3M rack and pinion six-level precision|
|Motor and driver||X,Y,Z Yaskawa servo Janpan||Best brand better than Fuji and Delta|
|Reducer||Shimpo VRT type Janpan||Better than axis output|
|Kindly noted: motor, driver and reducer that a full set of Japanese transmission mechanism to ensure cutting stability and accuracy|
|Cooling System||S&A Industrial water chiller||Dual temperature dual control, over temperature protection to ensure constant laser output|
|Machine Bed||MORN||Carbon structural steel tube and plate welding bed body|
Graphite anti-burning technology
|Electrical Circuit Part|
|Electricity components||Schneider||World famous brand|
|Control system||Cypcut||Best brand in China|
|Electrical control||OMRON Janpan||Safe and stable|
|Pneumatic system||SMC Janpan||World famous brand|
Applicable industry and material for cnc fiber metal laser cutting machine:

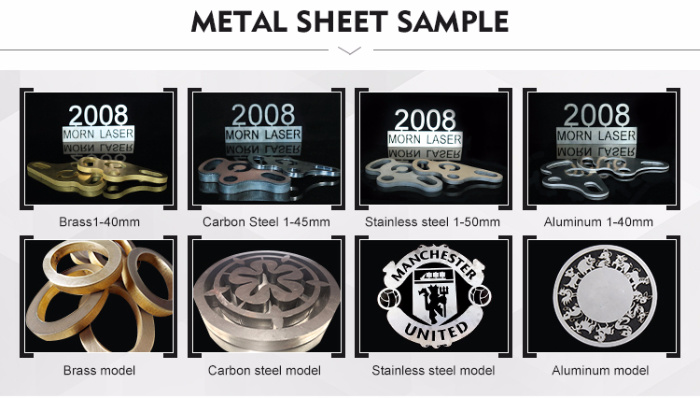

Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Gold plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Application Industries: Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc
Morn warranty for cnc fiber metal laser cutting machine:
1. 3 years warranty for whole machine, laser source 2 years (replace parts for free, no human reason)
2. Lifelong technical support online or by email
3. 18 hours online service to help you use our machine well
4. Offer oversea service for training, installing, operating if necessary
5. Offer training at our factory for free(you could visit us and learn)
FAQ for cnc fiber metal laser cutting machine:
Q1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using laser cutting machine, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q4: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information
1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2)Your materials, Metal/Acrylic/plywood/MDF?
3)You want to engrave or cut? If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.
